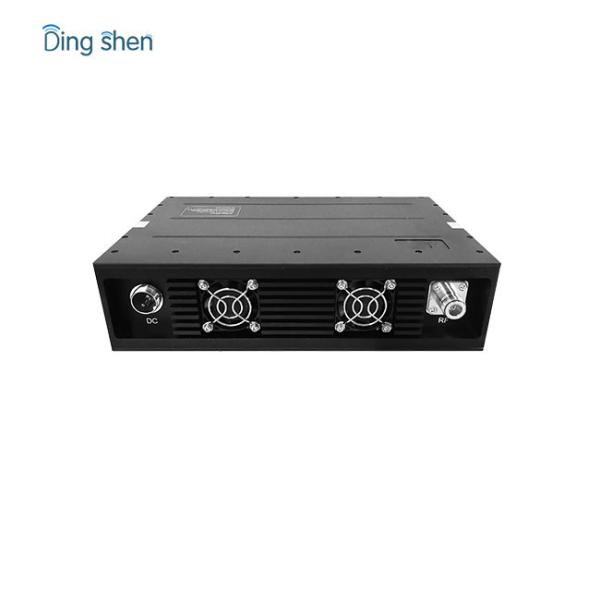

DS-25W Long Range Wireless HD Video UAV cofdm Transmitter
FPV audio video transmitter long range wireless HD video UAV Transmitter is one set NLOS
or LOS long range 1080P or 1080i HD HDMI or sdi COFDM video wireless transmitter and receiver.HD video UAV Transmitter DS-HD25 transmits data,including audio, video or images
over a NLOS long range.
FPV audio video transmitter is with the core technology 4th generation mobile communication COFDM module and low delay full hd 1080P technique, COFDM wireless video transmitter can transmit high quality and stable image under the condition of fast moving or many buildings as obstacles (NLOS) with carrier velocity greater than 450 km / h.long range wireless uav video transmitter are widely used in public security, armed police, fire, field armies,other military departments and broadcasting, urban management, civil defense, transportation, customs,
oil, mining, water, electricity, geology, finance and other relevant state departments.
| Frequency | 300-900MHz,1.2G/2.4G/4.4GHz (option) open 100MHz space to customer |
| RF Power | 15-25Watt(adjustable) |
| Voltage | DC11-14.5V |
| Current | 2.7A |
| Modulation | COFDM 2K QPSK |
| Constellation | QPSK,16QAM,64QAM |
| RF Bandwidth | 2/2.5/4/8MHz(adjustable) |
| FEC | 1/2 2/3 3/4 7/8 |
| Guard Interval | 1/32 1/16 1/8 1/4 |
| Data Encryption | AES 128/256 Bits |
| Max speed | 450km/h |
| Video Input | BNC: D1 standard definition |
| HDMI: HD1080I/1080P, 720P, 576, 480 |
| SDI:HD1080I/1080P, 720P, 576, 480 |
| Audio input | Stereo Left/Right channels |
| Video compression format | H.264 |
| Video Resolution | 1080p/1080i@60fps, 1920*1080 definition,720P |
| RF Interface | N-type |
| Work environment | -40℃~70℃ |
| Video Format | PAL/NTSC(self-adaption) |
| Transmission Distance | 15km NLOS distance(on ground station) 50km LOS distance (at coastal areas) Over 150km from UAV to ground |
| Case Material | Aluminum (black) |
| Size | 275*220*78mm |
| Weight | 5kg |
